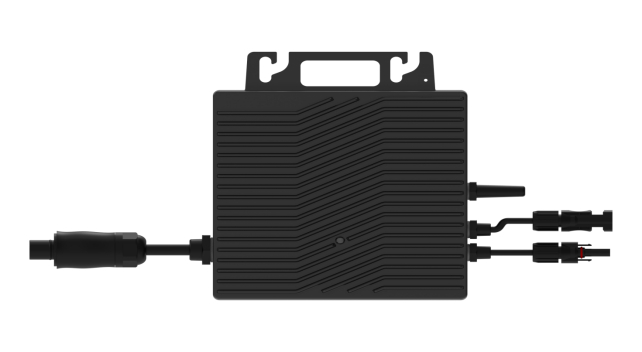

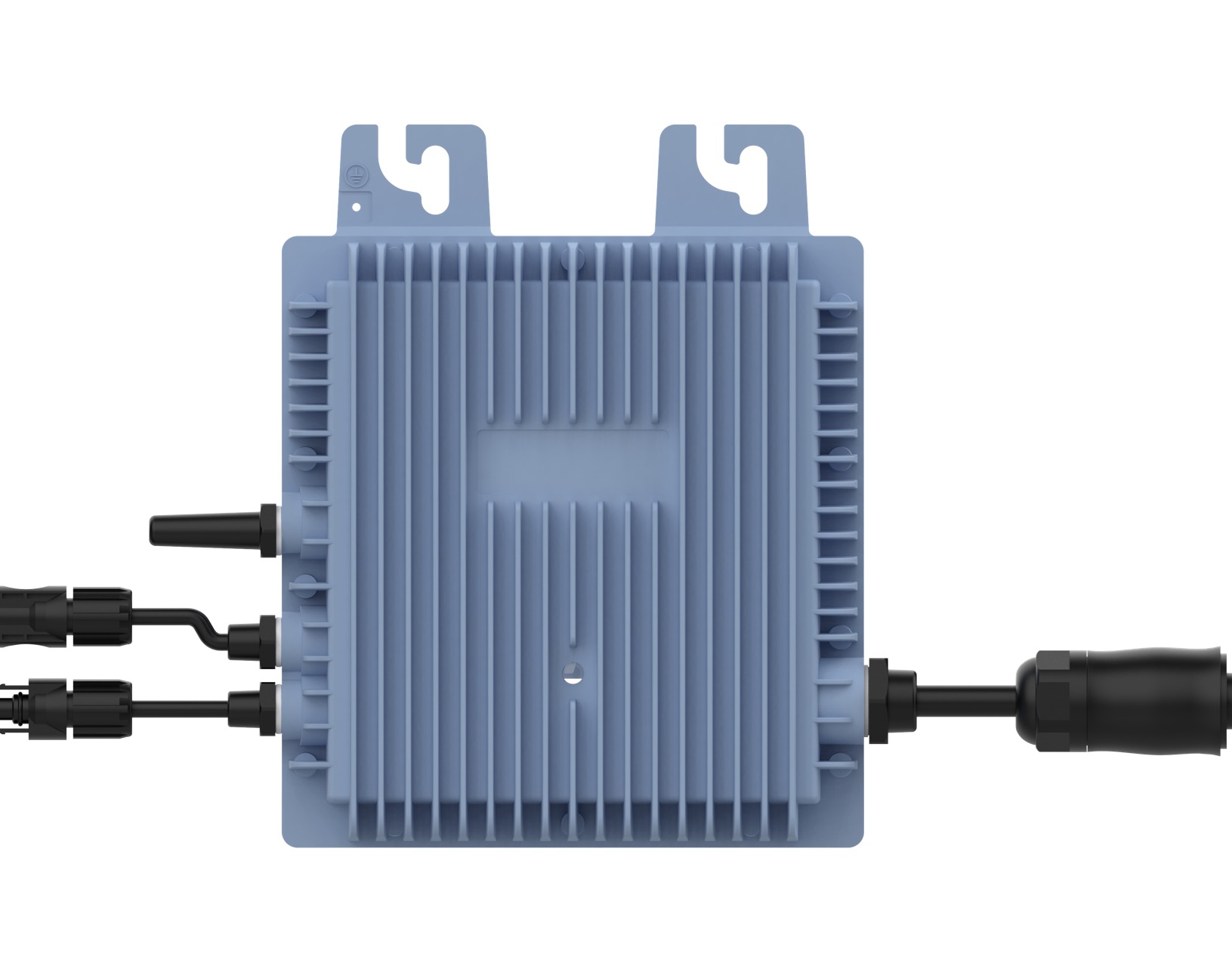

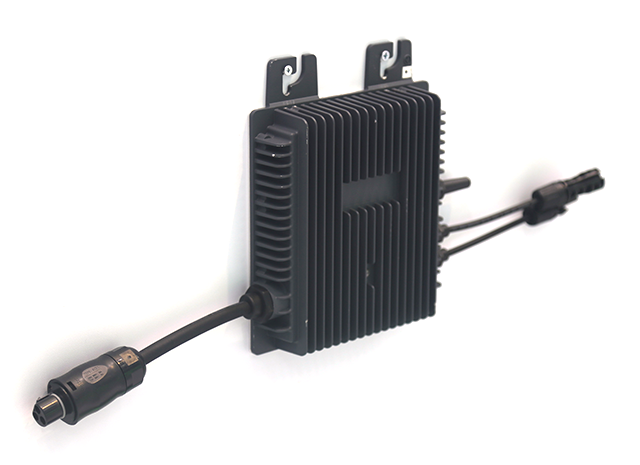

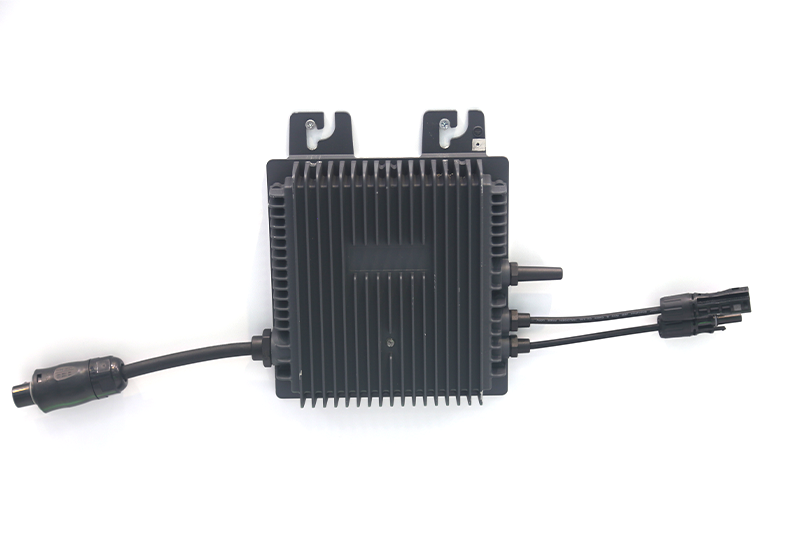

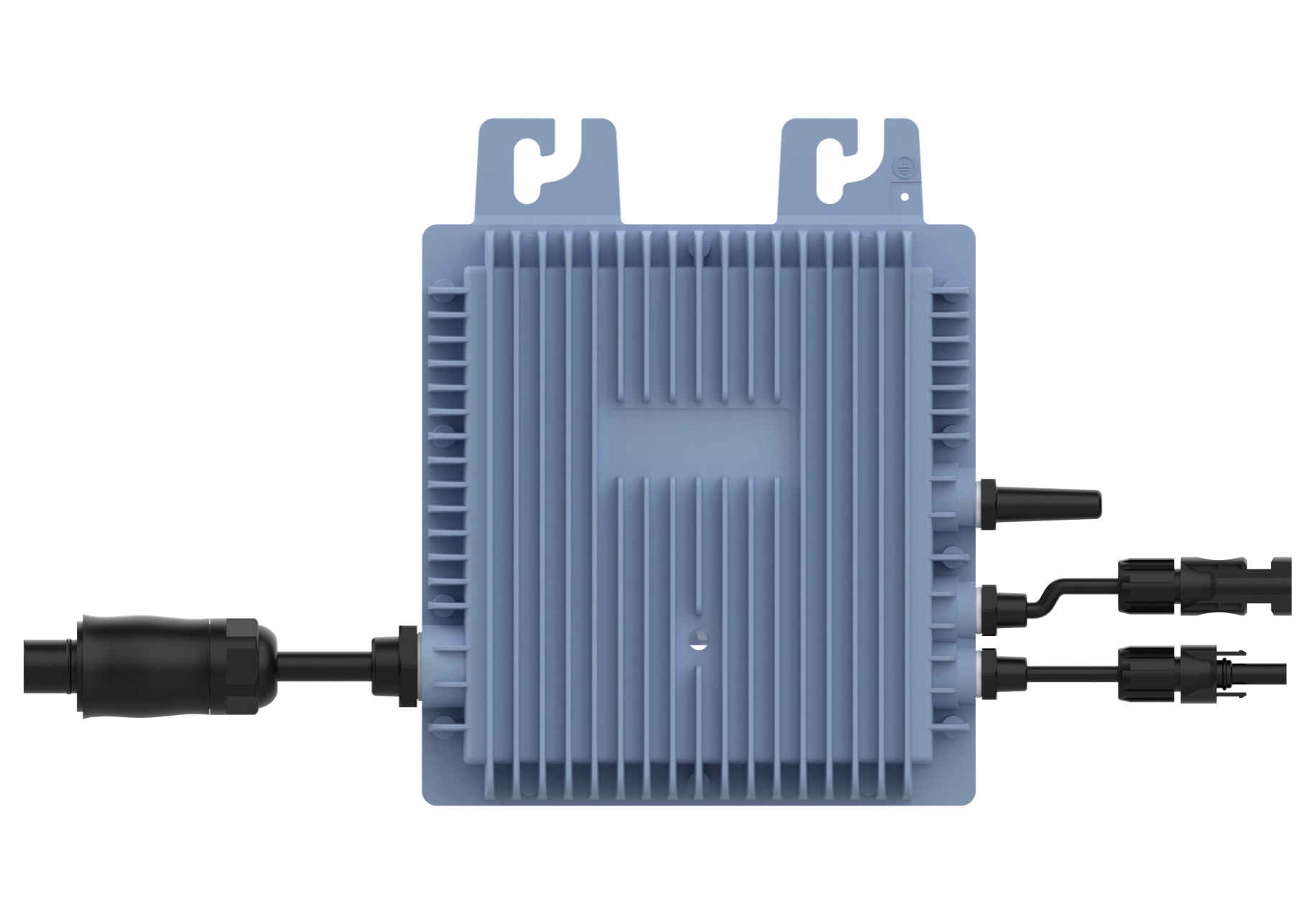

400W-VN1T04 (300/400/500W)

Discover the ultimate solution for efficient and reliable power with our inverters! Whether for solar power, wind energy, or uninterruptible power systems (UPS), our inverters seamlessly convert DC to AC power for both home and industrial use, ensuring stable electricity supply. Choose our inverters and enjoy exceptional conversion efficiency, robust load capacity, and outstanding reliability. Join us in advancing towards a smart and efficient future, enhancing your power systems like never before!

Availability:

Quantity:



Inquire Add to Basket

Model:
Atlas Series
Brand:
Amprisen

Product Description

Choose our inverters and enjoy exceptional conversion efficiency, robust load capacity, and outstanding reliability. Join us in advancing towards a smart and efficient future, enhancing your power systems like never before!

Input Date (DC)
Recommended Module Power [W]	300～550/MPPT
Start up Voltage per Input [V]	18
Mppt Voltage Range per Input [V]	17.5～55
Max.Input Voltage per Input [V]	60
Max.Input Current per Input [A]	13.3
Max.Input Short-circuit Current per Input [A]	20

Output Date (DC)
Max.Continous Output Power [VA]	400
Nominal Continous Output Power [W]	400
Nominal Output Current [A]	1.74
Max.Output Current [A]	2.48
Nominal Output Voltage [V]	220/230/240,L/N/PE
Nominal Frequency [Hz]	50/60
Power Factor	>0.99 default,0.95 leading...0.95 lagging
Output Current Harmonic Distortion	<3%
Max.Units Per Branch	18

Efficiency
CEC Weighted Efficiency	95.50%
EU Efficiency	93.60%
Mppt	99.90%
Night Time Power Consumption [mW]	<50

Mechanical Date
Dimensions (WHD mm)	22718342
Weight [kg]	1.8

Inverter micro Inverter Solar Inverter
