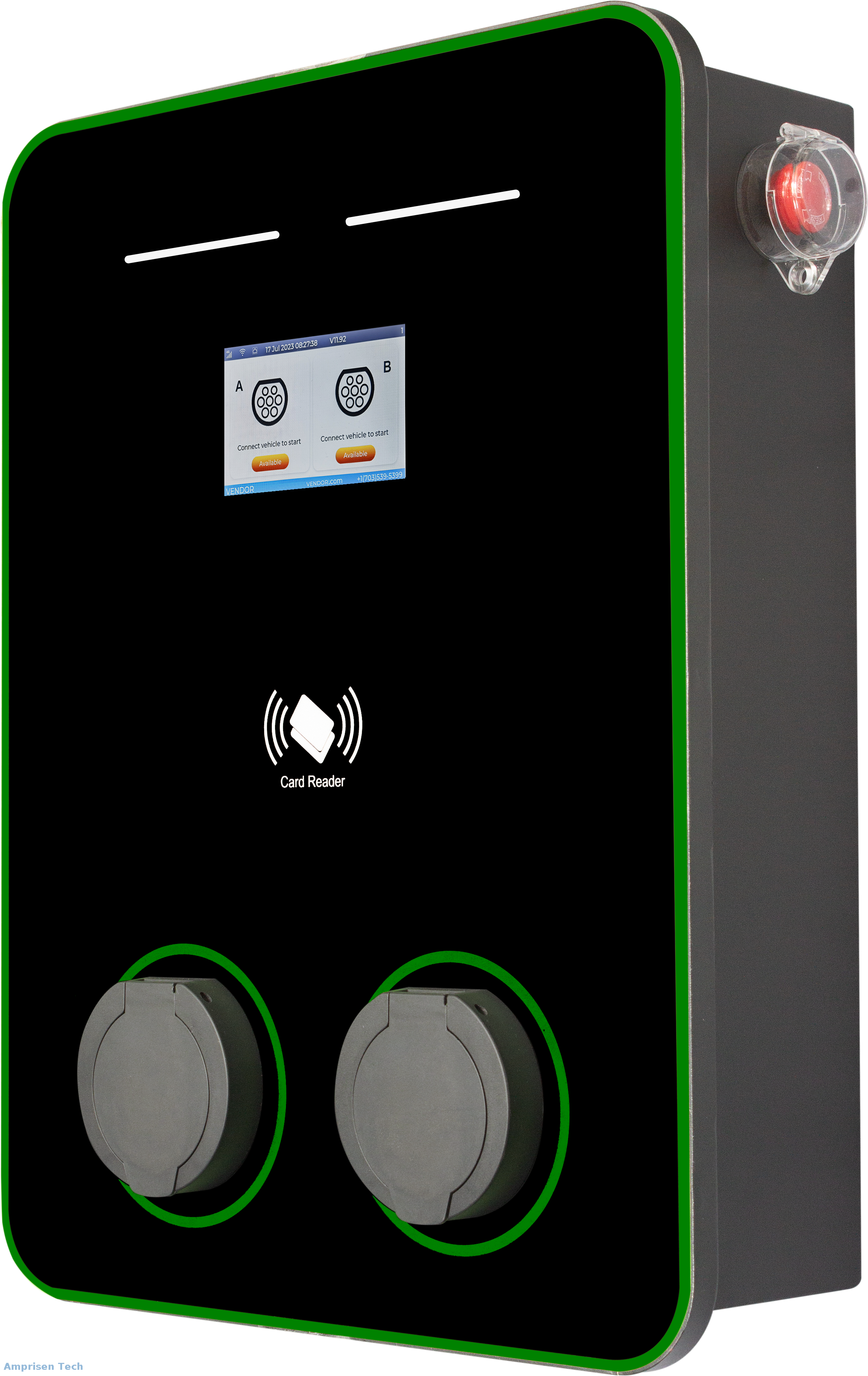

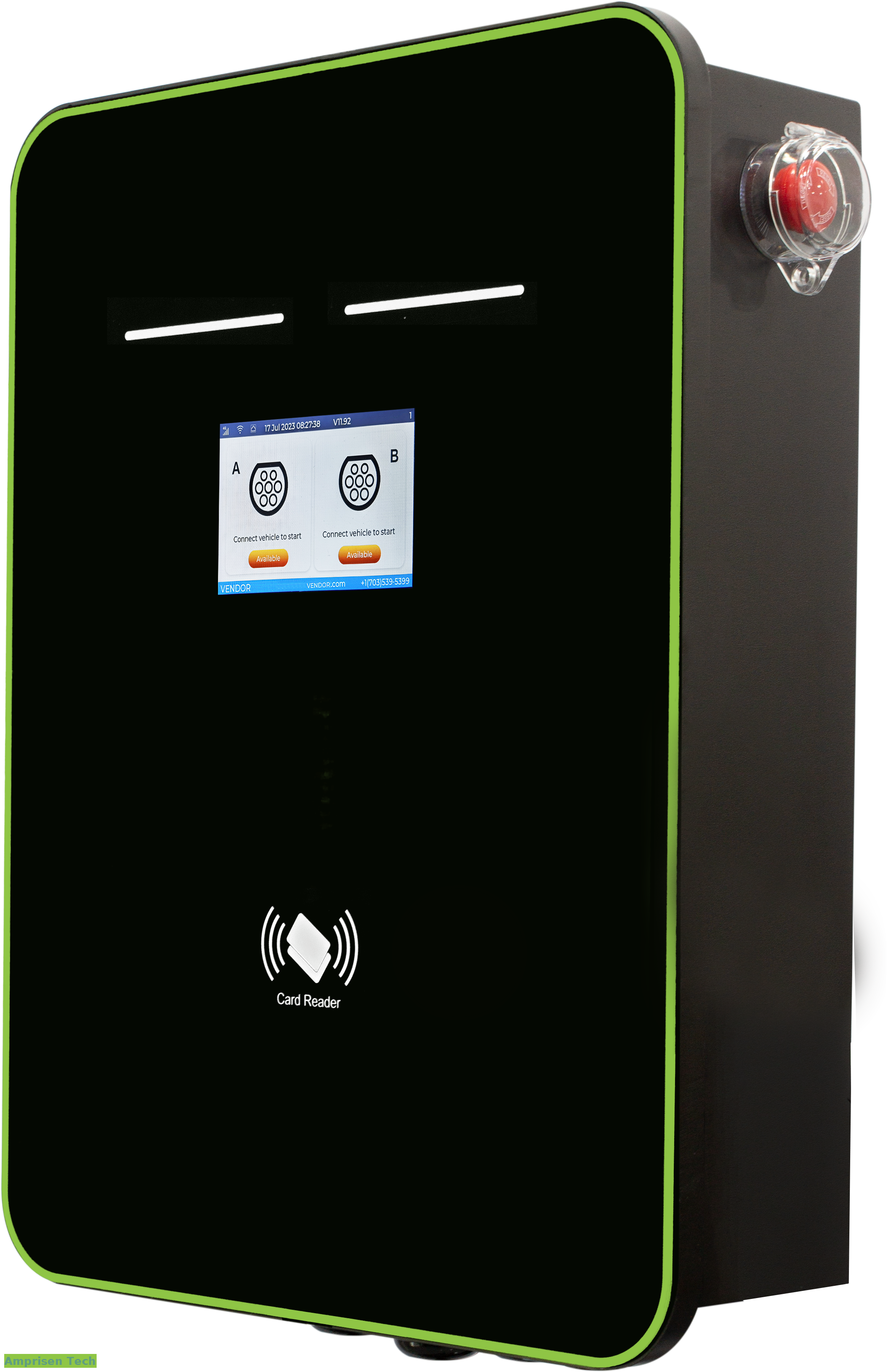

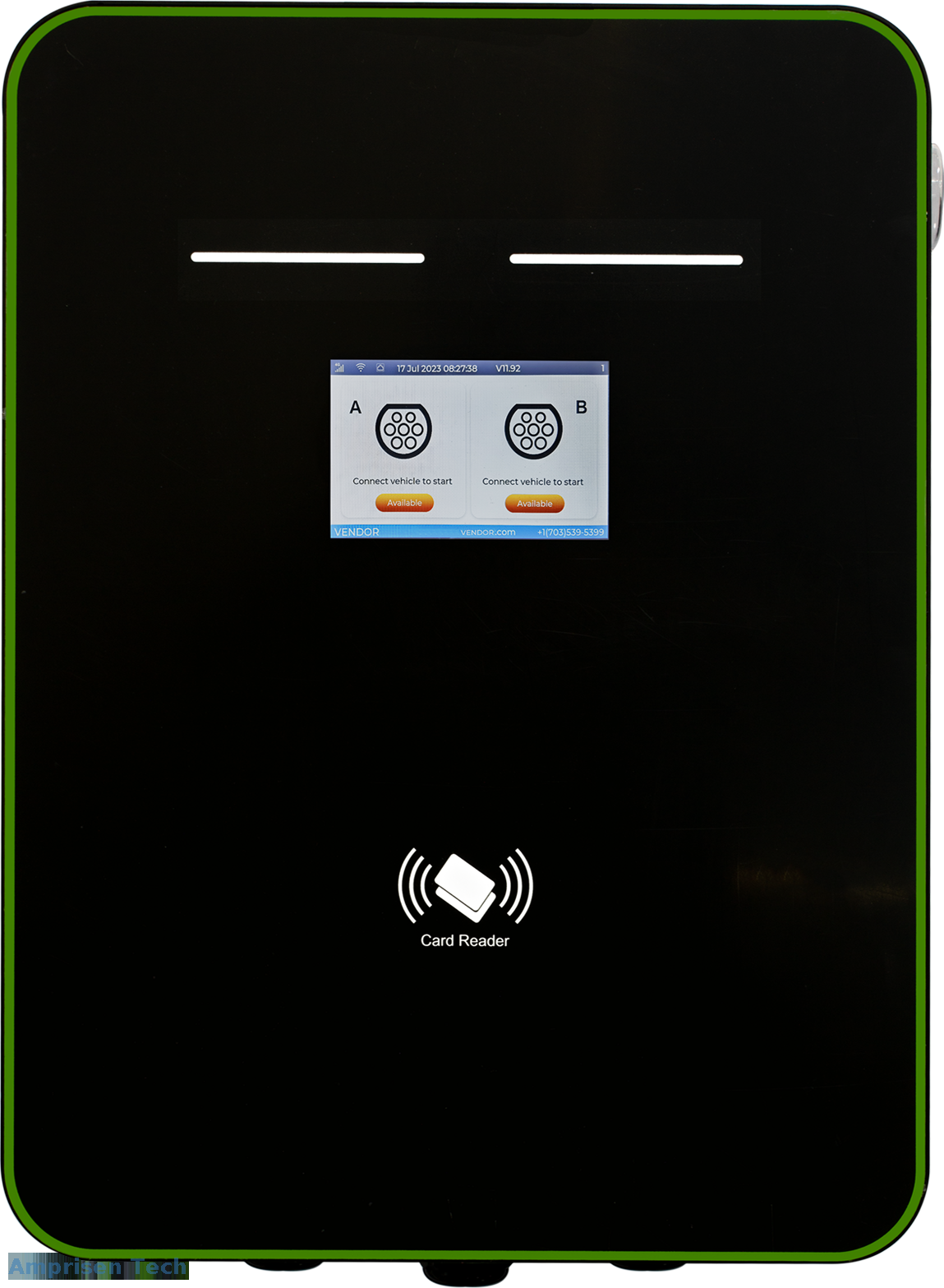

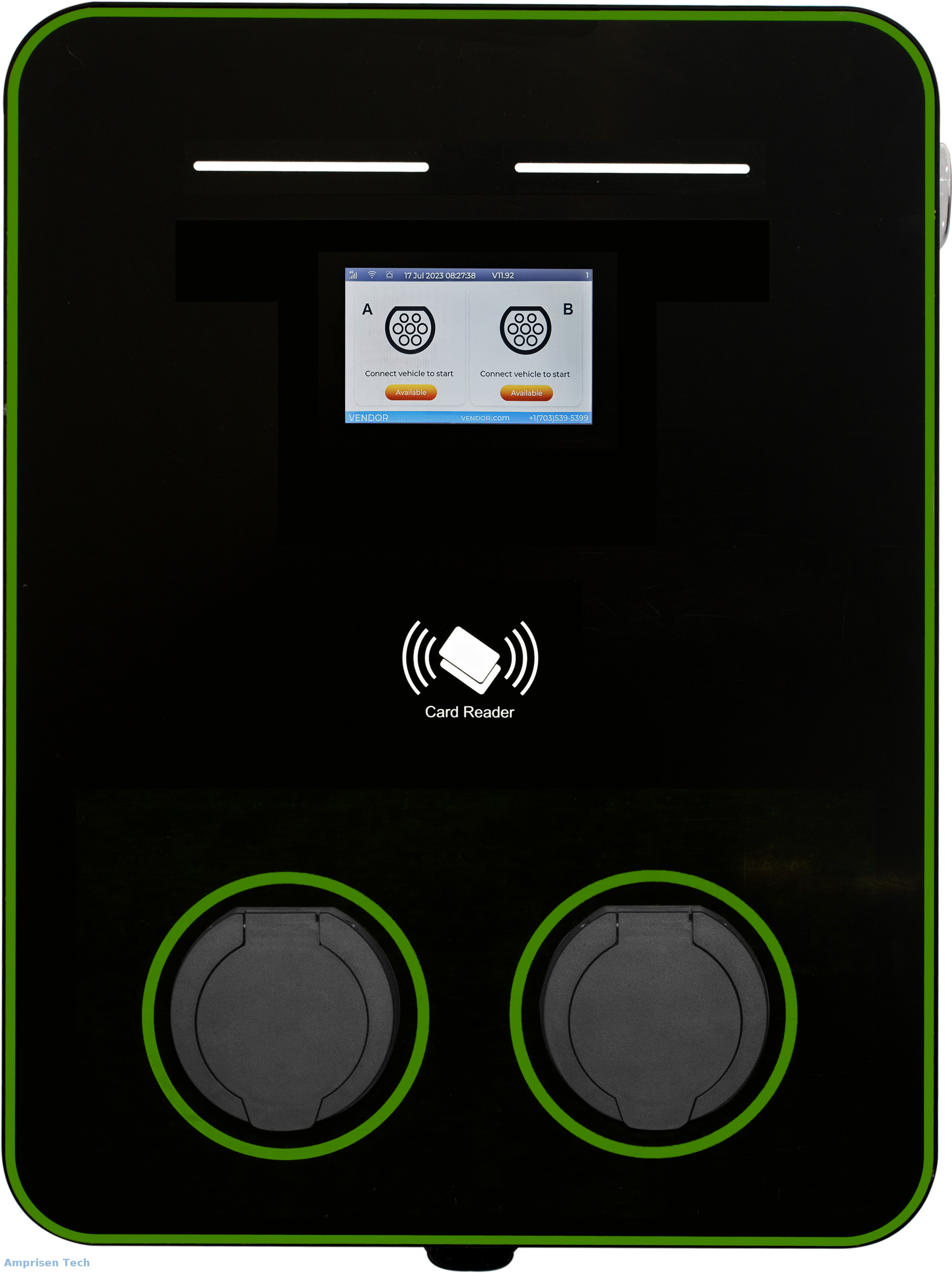

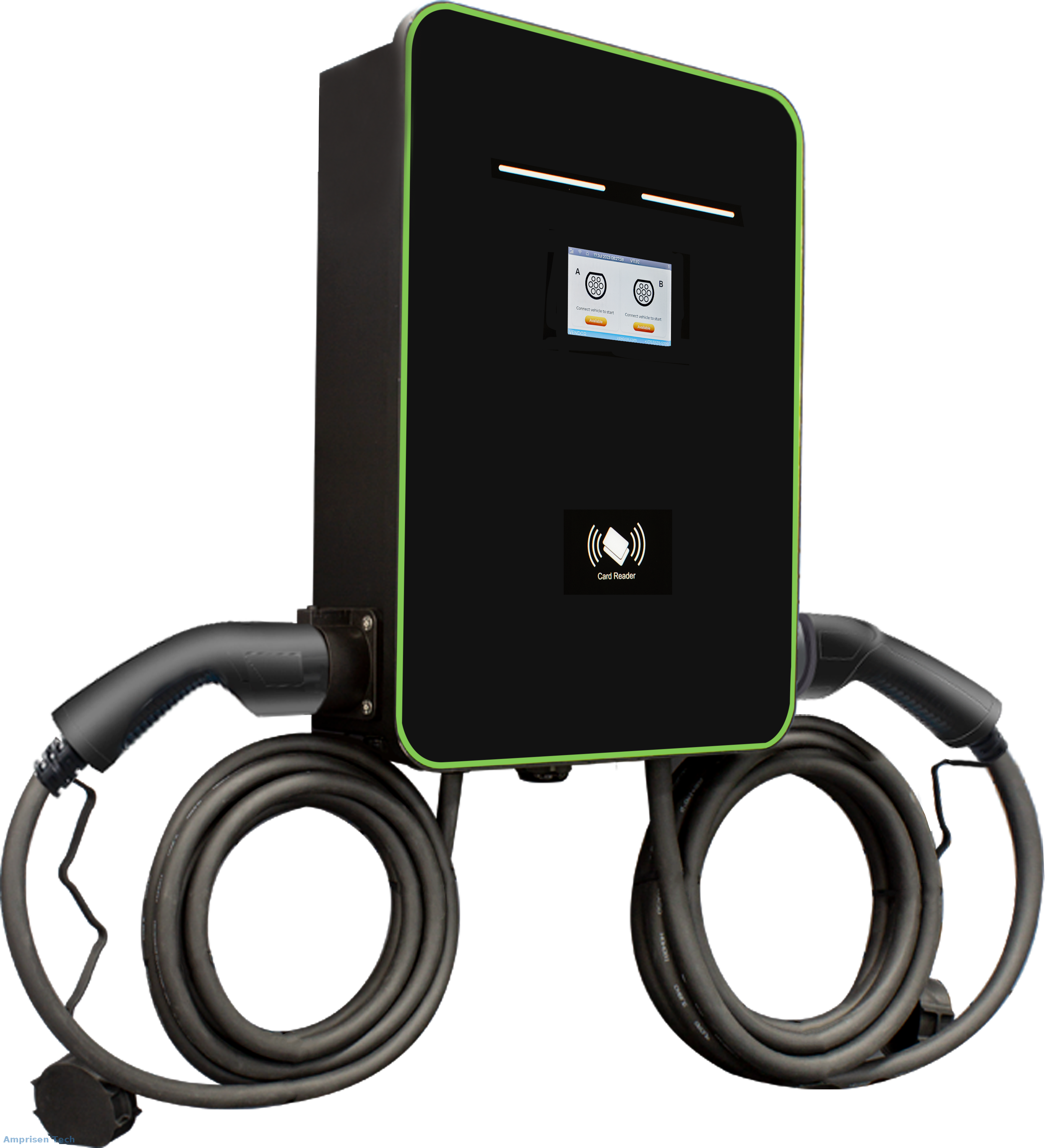

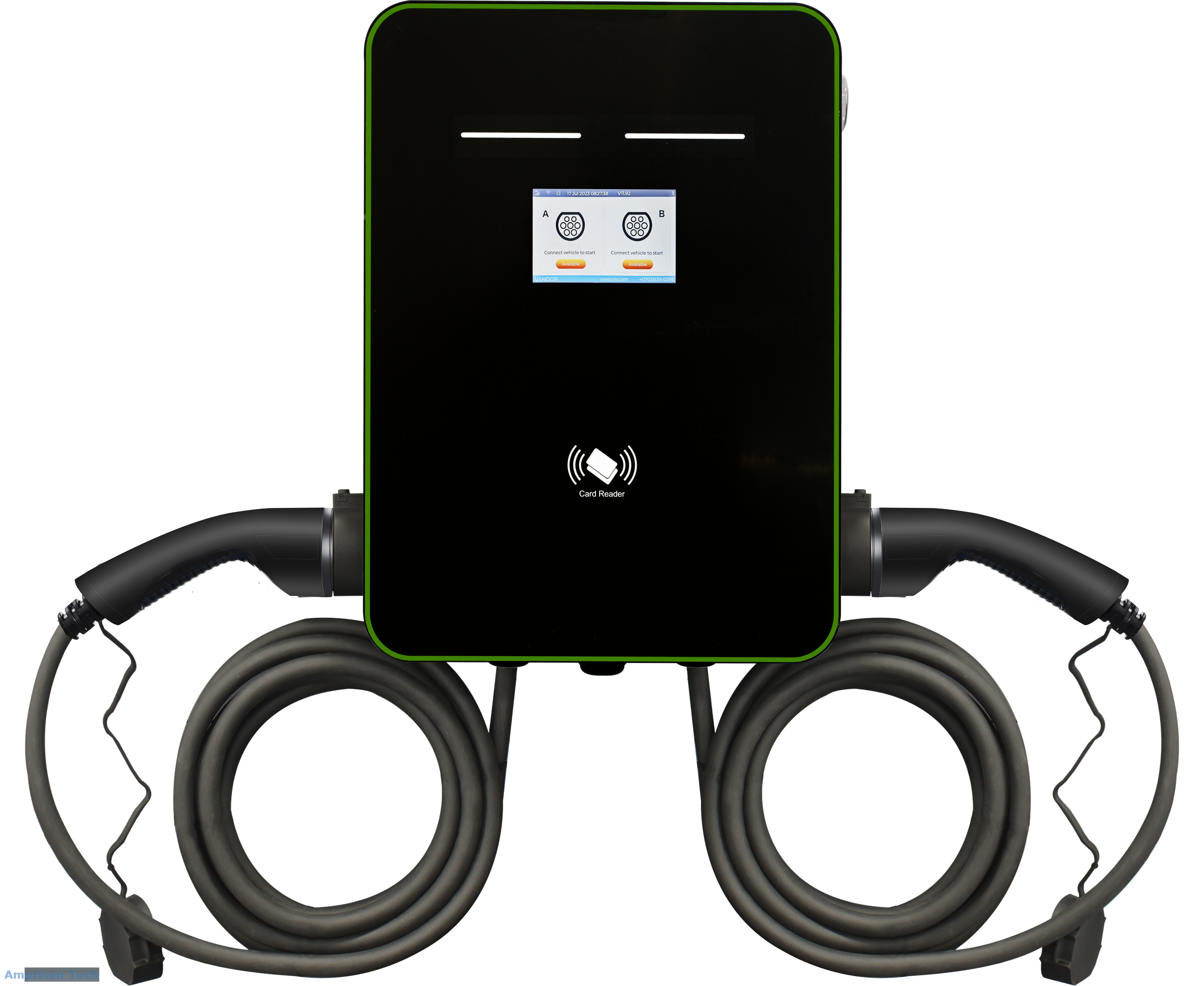

The Dual Gun EV Charging Station maximizes charging throughput with two outlets for simultaneous EV charging. Featuring a user-friendly LCD and smart chip technology for efficient operation, it ensures a seamless experience. Integrated safety measures protect against electrical hazards. Its durable, weather-resistant design guarantees reliable performance in diverse environments. Broad EV compatibility and flexible installation options in parking lots, garages, and commercial spaces make it a robust and practical charging solution.
| Quantity: | |
|---|---|
Double Socket
Amprisen
Product Technical Specifications
Input & Output
Power rating (Double gun): 14kW (1 Phase) / 22kW (3 Phase) / 44kW (3 Phase)
Charging interface type: GB/T 20234 / IEC 61851 / SAE J1772
Input & Output voltage: AC220V±10% (1 Phase) / AC380V±10% (3 Phase)
Output current: 16A / 32A
Frequency: 45-65Hz
Protection
Overvoltage protection: √
Undervoltage protection: √
Overload protection: √
Short circuit protection: √
Ground protection: √
Over temperature protection: √
Lightning protection: √
Function and Accessory
WIFI/4G/OCPP1.6/LAN: Optional
RFID (2 user cards): Optional
RCD: type A + 6mA DC
5 inch display: √
LED indicator light: √
Home load balancing (DLB): Optional
MID: √
Working environment
IP grade: ≥IP55
Working temperature: -40 ~ +65℃
Working altitude: ≤2000m
Working Humidity: 5%-95% no condensation
Cooling method: Natural cooling
MTBF: ≥100000H
Special protection: UV resistance
Standby power: 3W/5W (With LCD)
Mechanical
Dimension: 544(H) × 409(W) × 145(D) mm
Cable length: 5M (16.4FT) standard, or other size customizable
Weight: 21.6kg (Including charging gun)
Installation Method
Ground-mounting: √
Certificate
Certificate: CE, OZEV list, UKCA, SASO, TUV, CB
