Athena Series
Amprisen

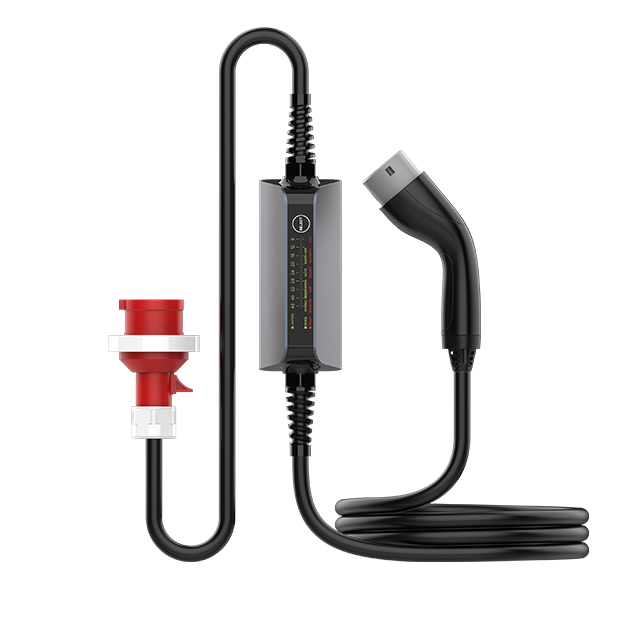

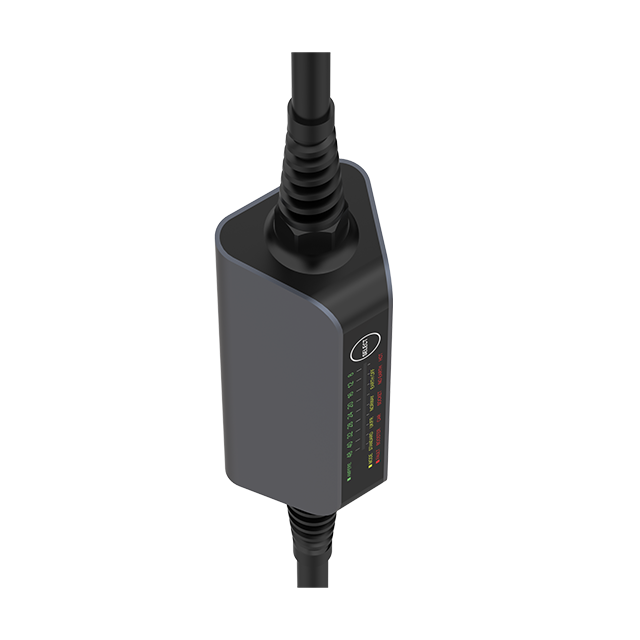

Introducing Portable EV Charger, a revolutionary solution designed to enhance the convenience of charging electric vehicles. Departing from traditional wall-mounted charging stations, Portable EV Charger offers unparalleled versatility and ease of use.
Product Information | |
Charging mode | mode 2 |
Input/output power rating and current | Three phase up to 22kW/32A |
Input/output voltage | 380V±20%, three phase; 50Hz/60Hz |
Network type | TT,TN |
Connector type | IEC 62196 Type 2 or Type 1 plug, 5m |
Internal RCD | AC 30mA, DC 6mA |
Protection | Overcurrent, overvoltage, undervoltage, integrated surge protectionLeakage Protection, Lightning Protection, Waterproof ProtectionOverheat Protection, CP Malfuntion Protection, Short circuit Protection |
| Power measurement accuracy | +/-1.0% from 1% to full scale |
| General Characteristics | |
| IP and lK rating | IP65;IK10(Screen:IK08) |
Operating altitude | 2000m |
Operating temperature range | -20C~+55C |
Storage temperature range | -20C~+85C |
Dimensions(H x W x D) | 210x90x78mm |
| User Interface | |
| Status Indication | LED RGB 20PCS |
| User interface | Easy Charging APP; Easy Charging Cloud |
| Connectivity | Bluetooth,Wi-Fi |
| Communication protocols | MQTT |
| User authentication | APP |
| Interface languages | English/中文/Deutsch/日本語/Italiano/Français/Português/Español (other languages upon request) |
| Certification and Standards | |
| Safety and compliance | EN17186, EN301489- 1 EN301489- 17 EN62311 |
| Certification | CE |
| Warranty | 24months,warranty extension possible |
