Amprisen Charging Module-Prometheus Series

Amprisen  Charging Module-Prometheus Series

Highlights

The Prometheus Series Charging Module is an integrated module designed for AC charging stations, incorporating functions such as leakage protection, charging control, human-machine interaction, serial communication, billing, and metering, with a maximum power support of 22KW. It can be installed within the enclosure of variously shaped chargers. Standardized communication interfaces facilitate module development, enhancing development efficiency. The modular configuration accelerates the iterative development of products with different power ratings, facilitating future product line expansions. It is suitable for AC charging of electric vehicles, catering to the charging requirements of electric vehicles with corresponding capacities (or lower capacities) and voltage levels.

Charge any electric vehicle effortlessly.

Installing the Amprisen Charger is a breeze – simply mount the wall bracket, connect it to a power source, and you're good to go. Charging your electric vehicle is as easy as charging your smartphone. Just plug in the type 2 cable, and the charger automatically adjusts to the car's power needs.

Key Features and Selling Points:

1.Ultra-High Integration and Compact Size:

  - Facilitates diverse exterior and structural designs.

  - Combines comprehensive functionalities into a single housing, boosting development efficiency.

2. Comprehensive Protection Functions:

  - Ensures safety with ten major protection features: residual current, short circuit, grounding, reverse connection, adhesion, over-temperature, over-current, lightning, over-voltage, and automatic power-off when fully charged.

3. High-Level Intelligence and Compatibility:

  - Supports OTA updates for RCD and energy metering.

  - Built-in MQTT and cloud fast charging protocols.

  - Expandable with Bluetooth, WiFi, 4G modules, Ethernet, NFC, display screens, and LED lights.

4. Strong Expansion Capabilities:

  - Small size with rich expansion interfaces for single-phase and three-phase charging stations.

  - Supports a variety of peripherals and enhanced functionality.

5. Global Standard Compliance:

  - Meets European (IEC/EN61851-1), American (UL2594, UL2231, CSA C22.2), and Chinese (GB/T 18471, GB/T 34657.1) standards.

6. Efficiency and Reliability:

  - Short development and certification cycles.

  - Designed for high efficiency and low costs.

7. Intelligent Control:

  - Supports wide input voltage with automatic detection and intelligent national voltage switching.

  - Reduces after-sales costs with foolproof design.

Specifications:

- Product Name: CCU-S

- Shell Material: PC+945A-V0

- Dimensions: 51.4mm (W) x 116.6mm (D) x 34.3mm (H)

- Maximum Power: 11.5KW

- Output Current: Max 48A

- Input Voltage: AC100-240V±20%

- Input Frequency: 50/60±3Hz

- Energy Detection: 50A current, 450V voltage, level 1 accuracy

- Standby Power: <3W

- Operating Temperature: -30℃ to +50℃

- Storage Temperature: -30℃ to +70℃

- Power Supply Load Capacity: 12V/500mA

- Protection Standards: RCD A+6mA / CCID20

- Lifespan: Over 50,000 power-off cycles

Application Scenarios:

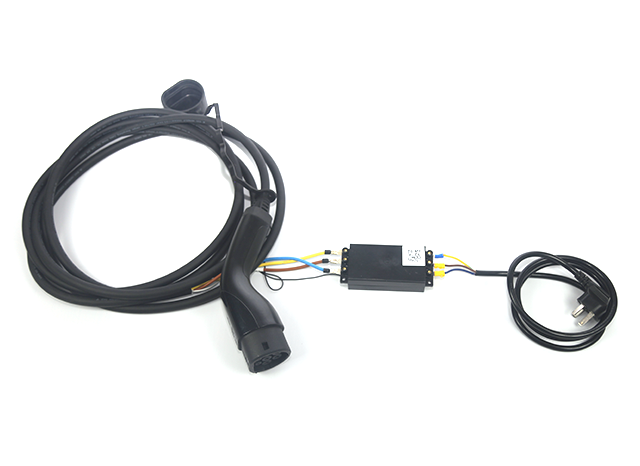

The Prometheus Series Charging Module is ideal for various AC charging stations and portable AC EV Charger, providing a robust, efficient, and safe solution for electric vehicle charging needs. Its advanced features and high compatibility make it suitable for use in diverse environments and applications, ensuring reliable performance and user satisfaction.

For more information and a visual overview, watch the [Prometheus Series Charging Module video](https://youtu.be/3rusBgcgiYE).
