Athena Series
Amprisen

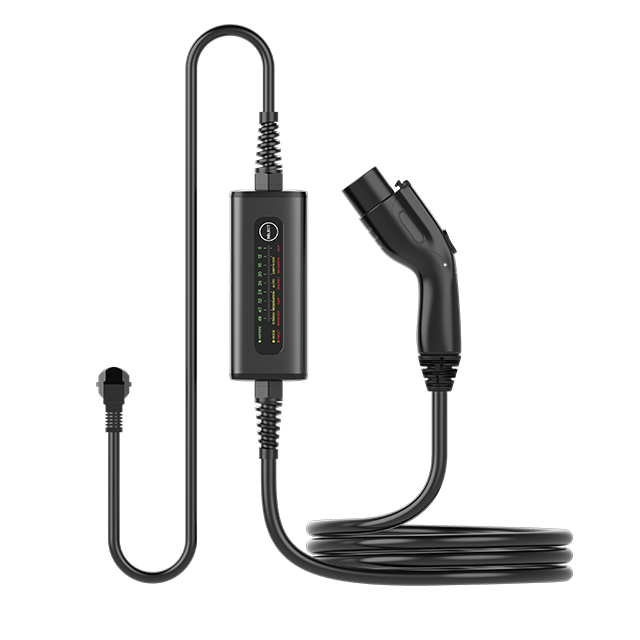

The OCPP Portable EV Charger offers a versatile and cost-effective solution for EV fleets, especially in managing electricity billing reimbursement. It allows employees to charge their vehicles conveniently at home instead of relying on designated public charging stations. This not only saves time but also takes advantage of lower residential electricity rates, reducing overall operating costs. Additionally, it eliminates the need for investing in fixed charging equipment and installation, making it a highly flexible and budget-friendly option for fleet management. This portable charger simplifies the charging process while maintaining efficient billing and reimbursement workflows.
Product Information | |
Charging mode | mode 2 |
Input/output power rating and current | Three phase up to 11.5kW/16A |
Input/output voltage | 380V±20%, three phase; 50Hz/60Hz |
Network type | TT,TN |
Connector type | GBT |
Internal RCD | AC 30mA, DC 6mA |
Protection | Overcurrent, overvoltage, undervoltage, integrated surge protectionLeakage Protection, Lightning Protection, Waterproof ProtectionOverheat Protection, CP Malfuntion Protection, Short circuit Protection |
| Power measurement accuracy | +/-1.0% from 1% to full scale |
| General Characteristics | |
| IP and lK rating | IP65;IK10(Screen:IK08) |
Operating altitude | 2000m |
Operating temperature range | -20C~+55C |
Storage temperature range | -20C~+85C |
Dimensions(H x W x D) | 198x81.5x66mm |
| User Interface | |
| Status Indication | LED RGB 20PCS |
| User interface | Easy Charging APP; Easy Charging Cloud |
| Connectivity | Bluetooth,Wi-Fi |
| Communication protocols | MQTT |
| User authentication | APP |
Interface language | English/中文/Deutsch/日本語/Italiano/Français/Português/Español (other languages upon request) |
| Certification and Standards | |
| Safety and compliance | GBT |
| Certification | CE |
| Warranty | 24months,warranty extension possible |
