Prometheus Series
Amprisen

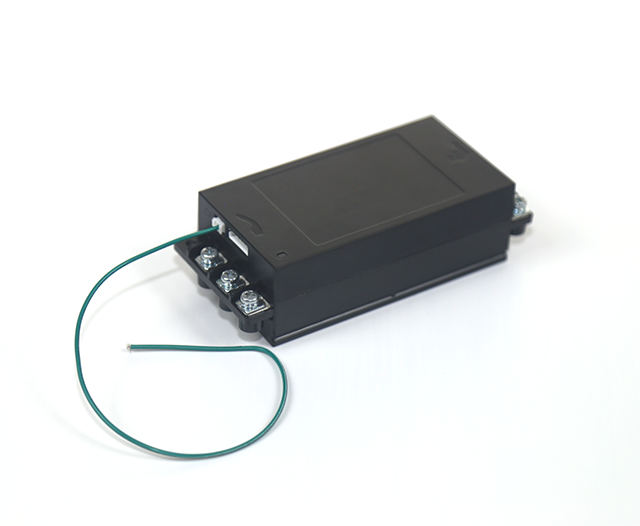

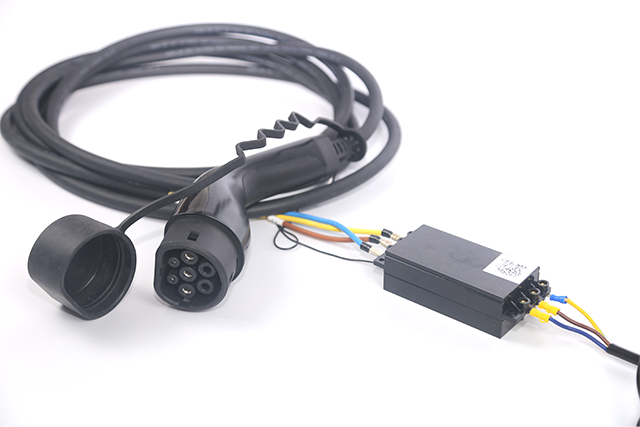

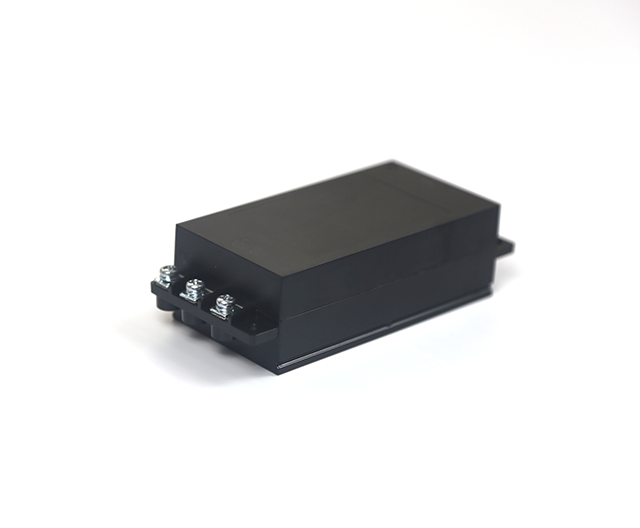

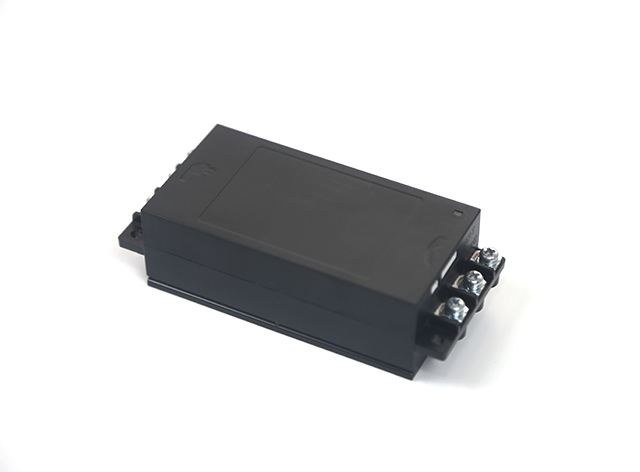

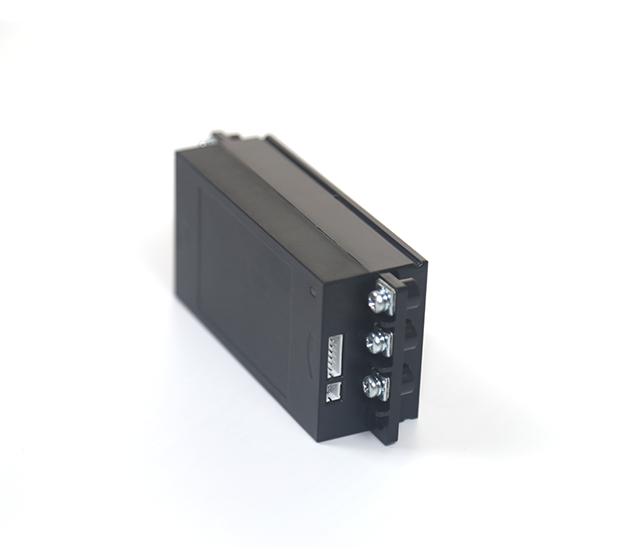

Introducing EV Charger Module, a revolutionary solution designed to enhance the convenience of charging electric vehicles. Departing from traditional wall-mounted charging stations, EV Charger Module offers unparalleled versatility and ease of use.
Product Information | ||
Hardware Integration | Functional Parameter | Remarks |
Electric Relay | Maximum Support for 48A Charging | Meet the requirements of safety regulations |
Full load power protection | Full load power-off life is> 50,000 times | Patent design: The only one |
Bluetooth 5.0 | External cloud fast charging / MQTT protocol | OTA / WiFi support is optional |
DC-DC source | Low power consumption, ripple coefficient <100 mV | 12V 500mA |
| Negative Voltage Output | 12V Output | The charging power is controlled by the CP detection |
| Leakage Protection (RCD) | Consistent with the TypeA + 6 mA | Comply with CE Criteria |
| Power Metering (Electricity Meter) | Meet level 1 accuracy requirements | MID instruction certification |
| Temperature Sensor | Error accuracy: ± 2% RH | Intelligent temperature control, detection and protection design |
| CP | 2P | Charging output power control |
| Power Supply + UART Interface | 12V/500mA | Provide power / connect interactive control board to peripherals |
| Protection Functions | Residual current protection,Short circuit protection,Grounding protection,Reverse connection protection,Adhesionprotection,Over-temperature protection,Over-current protection,Lightning protection,Over-voltage protection,Power-off when fullycharged | |
| Software Functions | ||
- Power level adjustment via app | ||
- Scheduled charging | ||
- Built-in MQTT/cloud fast charging protocol | ||
- Local storage for up to 50,000 recent logs | ||
| - Support for OTA (Over-The-Air) software updates | ||
| Compliance Standards | ||
| - CCU Module: | ||
| - Compliant with European standards: IEC/EN61851-1 | ||
| - Compliant with American standards: UL2594; UL2231; CSA C22.2 No. 280:22 | ||
| - Compliant with Chinese standards: GB/T 18471; GB/T 34657.1; NB/T 33002-2018; NB/T 33008.2-2018 | ||
| - RCD (Residual Current Device): | ||
| - Compliant with European standards: IEC 62955; IEC 62752 | ||
| - Compliant with Chinese standards: GB/T40820; GB/T 16916.1 | ||
| - Compliant with American standards: UL2594; UL2231 | ||
| Product Features | ||
| 1.Ultra-high integration, compact size: Convenient for various exterior and structural designs. | ||
| 2.Comprehensive functionality integration: A complete charging station with just one housing, leading to high development efficiency. | ||
| 3.Comprehensive module certification: Low certification costs and short certification cycles; only structural differences testing required. | ||
| 4.High level of module intelligence: OTA capability for RCD/electrical energy metering and other functions, with rich built-in platform integration protocols. | ||
| 5.Comprehensive and reliable protection functions: Ten major safety protection functions ensure safety and reliability. | ||
| 6.High compatibility: Support for expanded Bluetooth + WiFi functionality, MQTT protocol, and cloud fast charging protocol. | ||
| 7.Strong expansion capability: Small size, rich expansion interfaces, external design adapter boards supporting single-phase and three-phase charging station modules. Hardware supports metering, 4G module, Ethernet, NFC, display screens, LED lights, etc. Software supports cloud platform, cloud fast charging, OCPP1.6J | ||
| 8.Strong compatibility and applicability: Mode 2/mode 3 software switching, continuous adjustment of charging current. One hardware module can complete all single-phase charging station designs | ||
| 9.Intelligent switching: Support for wide input voltage, automatic detection of AC input voltage, intelligent control for switching national voltage, foolproof design, reducing after-sales costs. | ||
| 10.One module for all, gradually iterated optimization, stable quality, short development and certification cycles, high efficiency, and low cost. | ||
