This series is currently backed by one imported product source. The configuration below is shown as a verified summary instead of separate selector buttons until each market standard has its own mapped images, datasheet, and specifications.

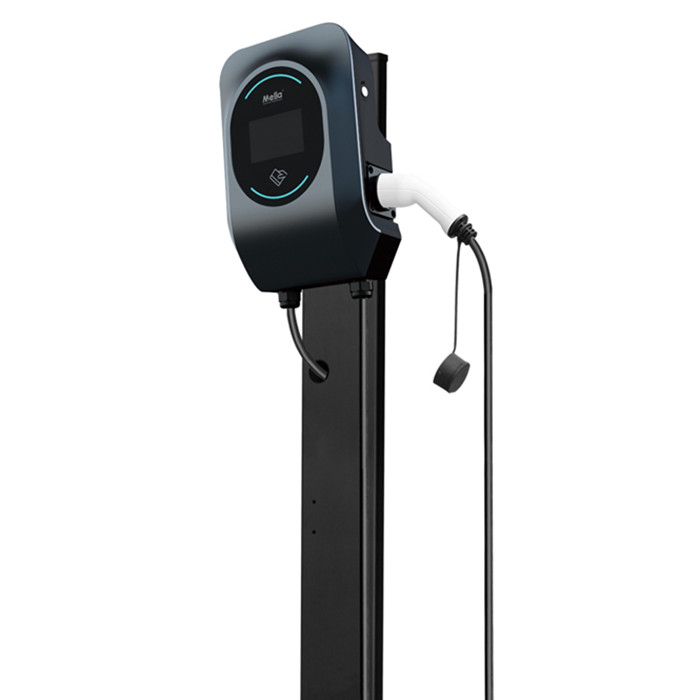

| Model | MONTA OCPP AC Charger 7/11/22KW Type1 Type2 |
|---|---|
| SKU | AMP-MONTA-AC-07-22-T1-T2 |
| Power | 7/11/22kW |
| Connector | Type 1 / Type 2 |
| Market | EU / US project configuration |
| Output | 5m TPU cable |
| Display | 4.3-inch screen |
| Communication | MONTA OCPP 1.6J, WiFi, Bluetooth, optional 4G |
| Phase | single-phase / three-phase |
|---|---|
| Input voltage | 250V AC, 50/60Hz |
| Current rating | 32A maximum |
| Certifications | CE, RoHS |
|---|---|
| Recommended use | Smart homes, businesses, charging networks, and commercial sites using MONTA backend management |
| Status | SMART |
Project fit and buyer notes
MONTA OCPP AC Charger Series can be evaluated as part of Amprisen's AC EV charger range. Confirm connector, power, network, certification, branding, and installation requirements before quotation so the final configuration matches the target market and deployment scenario.
| Decision area | What to confirm |
|---|---|
| Power and phase | Confirm 7kW single-phase or 11kW/22kW three-phase charging based on grid capacity and vehicle onboard charger. |
| Connector and output | Select Type 1, Type 2, GBT, or NACS planning, then choose socket or tethered cable output. |
| Smart functions | Confirm OCPP, RFID, app control, DLB, WiFi, Bluetooth, Ethernet, or 4G only when the site needs managed operation. |
| Metering and protection | Check Dynamic Load Balancing for shared power sites, MID metering for billing or reimbursement, and RCD requirements such as Type A, Type B, or 6mA DC leakage protection. |
| Use case | Separate private home charging from apartment, hotel, workplace, parking operator, and fleet scenarios. |
AC EV chargers are the normal starting point for home, workplace, apartment, hotel, and destination charging because they balance installation cost, parking dwell time, and everyday driver convenience.
Select Type 1, Type 2, GBT, or NACS planning by country first, then confirm 7kW, 11kW, or 22kW power, socket or cable output, OCPP, RFID, app control, Dynamic Load Balancing, MID metering, RCD protection, and certification needs.
Common risks are undersized grid capacity, unclear backend responsibility, wrong connector standard, cable management problems, outdoor exposure, and inconsistent installation guidance for distributors or installers.
MONTA OCPP AC Charger Series can be reviewed for commercial projects when its power, connector, communication, certification, and installation format match the target use case. Share the site and backend requirements before quotation.
OCPP, RFID, app, 4G/WiFi/Ethernet, and remote monitoring requirements should be confirmed by model and project configuration. Amprisen can discuss backend compatibility during the inquiry stage.
Send the target country, connector standard, power level, input phase or grid details, mounting type, communication method, certifications, branding needs, estimated quantity, and expected delivery schedule.
