High-power DC EV chargers (60kW+) for commercial use offer rapid charging with wide voltage (150-1000V) and high current output. Supporting CCS-1/2, CHAdeMO, and optional GB/T, they feature a user-friendly touchscreen, OCPP compliance, and robust safety. Durable with high IP rating, they offer wired/wireless connectivity and load balancing. Ideal for charging hubs and public stations, ensuring efficient EV charging.
| Quantity: | |
|---|---|
DC EV Charger
Amprisen
Versatile DC EV Charging Station for Commercial
Our DC EV Charging Station offers a flexible and efficient charging solution for a wide range of applications, from commercial operations and public infrastructure to private garages and tailored client systems. This robust station is designed for reliable performance and meets diverse user needs.1
| Parameter | Specification |
| Usage | Commercial operation, own garage, centralized/background operation management, joint client's own application management system |
| Usage Scenarios | Large/medium-sized parking garage, 4G/Wifi wireless terminals connected charging management system |
| Input Voltage | AC 400±10% 3P+N+PE |
| Frequency | 50±5% Hz |
| Power Factor | ≥0.99 |
| Current Distortion (THD) | ≤5% |
| Output Current | 0-400A |
| Stabilization Accuracy | ≤±0.5% |
| Steady Flow Accuracy | ≤±1% |
| Ripple Factor | ≤±0.5% |
| Output Voltage Range | 150-1000VDC |
| Charging Port | European standard |
| Number of Charging Guns | 2 |
| Output Power | 30 / 60 / 120 / 180 / 240 / 300 / 360 kW |
| Package | Wooden packing |
| Dimensions (WxDxH) | 840x880x2000mm (Subject to the actual product) |
| Cable Length | 7 or 10m (Optional) |
| IP Grade | IP 54 |
| Communication Method | PLC (Between car piles), Ethernet (Between piles) |
| Cooling Method | Air-cooled |
| Effectiveness | ≥94% |
| Standards Compliant | EN 61851-1, EN 62196, IEC 61851-21-2, EN 61851-23, EN 61851-24 |
| Protective Function | Protection functions such as overvoltage, undervoltage, overload/short circuit grounding, lightning protection, emergency stop protection, full automatic power-off etc. |
| Working Temperature | -30 to +50 °C |
| Storage Temperature | -40 to +70 °C |
| Humidity | 5%-95% No condensation |
| Altitude | ≤2000m |
| Noise | ≤70 dB |
This DC EV charging station is a reliable and efficient solution for a variety of EV charging needs, offering high power output and comprehensive protection features. Its compliance with European standards ensures compatibility and safety.
Empowering Commercial EV Charging with High-Power DC Fast Chargers
Our range of high-power DC EV chargers, starting from 60kW and extending to ultra-fast charging capabilities, is engineered to meet the demands of commercial and public charging infrastructure. Designed for rapid and efficient charging, these stations minimize downtime for electric vehicles, maximizing throughput for charging operators and convenience for EV drivers.1
Built with robust components and advanced charging technology, our high-power DC chargers ensure reliable performance and safety. They are ideal for deployment in various commercial settings, including charging hubs, fleet depots, highway service stations, and urban charging locations.2
Key Features and Typical Technical Specifications:
Power Output: Available in configurations starting from 60kW, with options for 120kW, 150kW, and higher to support ultra-fast charging.
Output Voltage: Typically supports a wide voltage range (e.g., 150V-1000V DC) to be compatible with various EV battery architectures.
Output Current: High current output to enable rapid charging (e.g., up to 200A or more).
Charging Interface: Supports industry-standard connectors such as CCS-1, CCS-2, CHAdeMO, and optionally GB/T, ensuring broad vehicle compatibility.

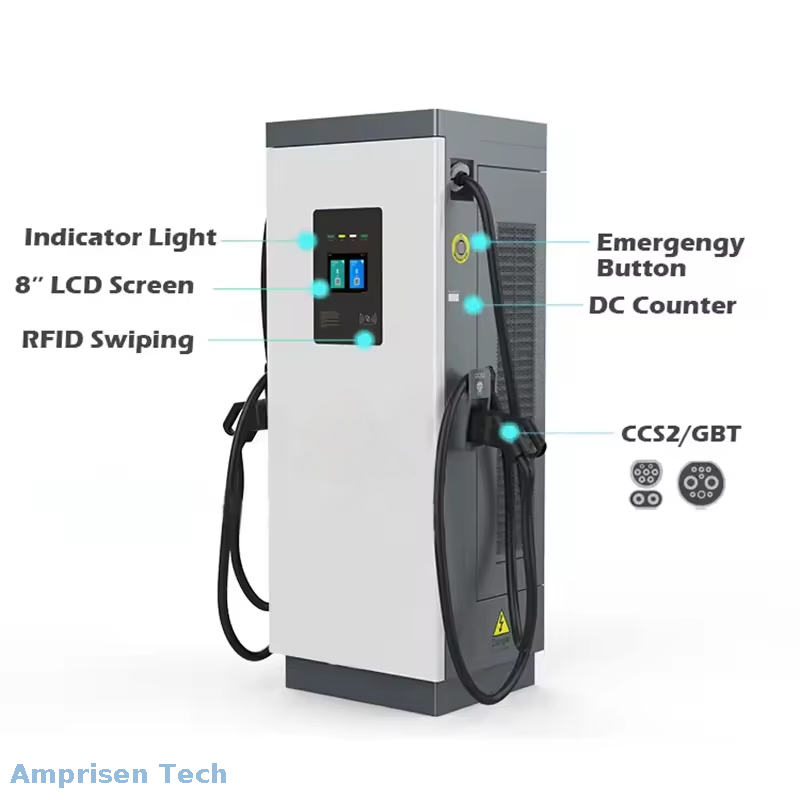

User Interface: Features a user-friendly touchscreen display for easy operation, status monitoring, and payment processing (optional).3
Communication Protocol: OCPP (Open Charge Point Protocol) compliant (e.g., OCPP 1.6J, OCPP 2.0.1) for seamless integration with charging network management systems.4
Safety Features: Comprehensive safety mechanisms including over-current protection, over-voltage protection, under-voltage protection, short circuit protection, over-temperature protection,5 and emergency stop button.
Durability: Robust enclosure with a high IP rating (e.g., IP54 or higher) for outdoor and indoor installations, ensuring resilience against environmental factors.
Connectivity: Options for wired (Ethernet) and wireless (4G/LTE, Wi-Fi) network connectivity for remote monitoring, diagnostics, and software updates.
Load Balancing: Intelligent load management capabilities to optimize power distribution when multiple chargers are installed at the same site.6
Payment Options: Supports various payment methods, including credit/debit cards, mobile payments, and RFID.
Remote Management: Enables remote monitoring, control, and diagnostics, reducing operational costs and improving uptime.7
