Introducing the robust Type 2 Floor Mount EV Charging Station. Featuring a user-friendly 7" touchscreen and versatile Plug & Play/APP/RFID start modes, it offers reliable AC charging (14/22/44kW) with IP65 protection. Certified with CE and TUV, it ensures safety with comprehensive electrical safeguards. Its durable design and 6m cable make it ideal for diverse environments. Backed by a 2-year warranty.
| Quantity: | |
|---|---|
Floor Mount AC EV Charger
Amprisen

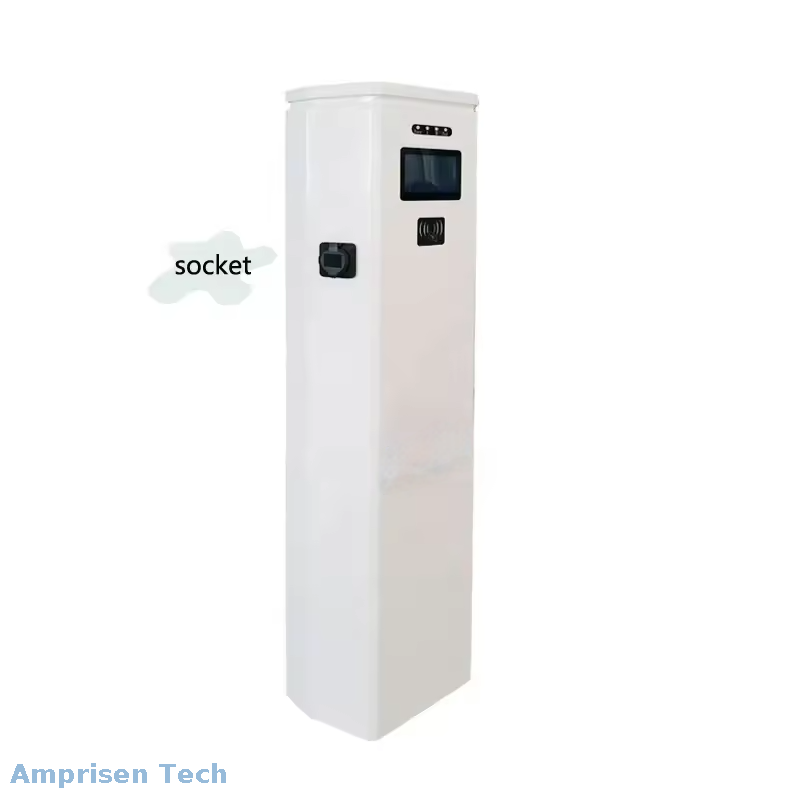

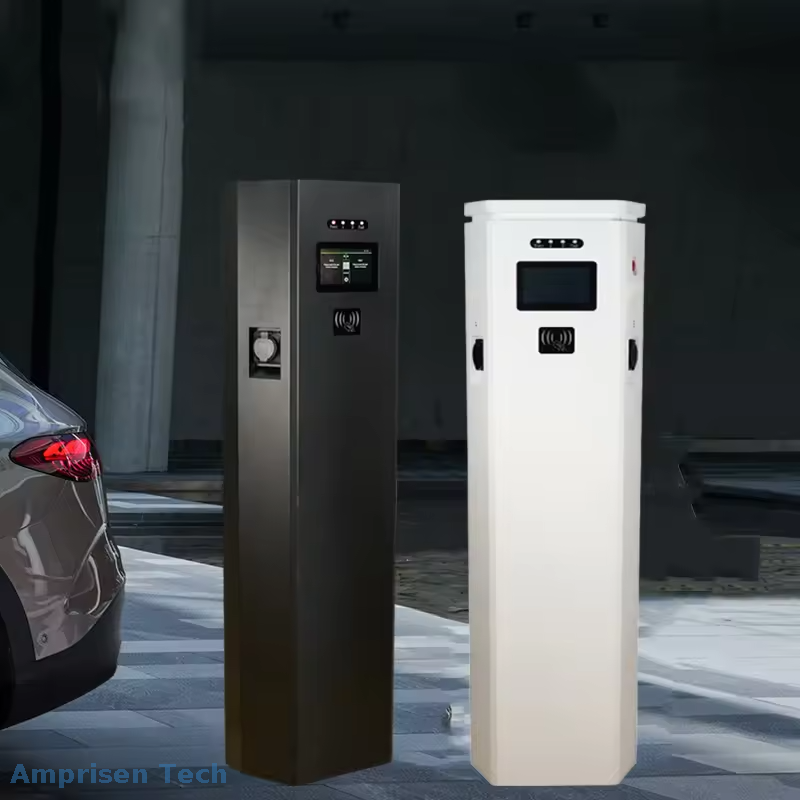

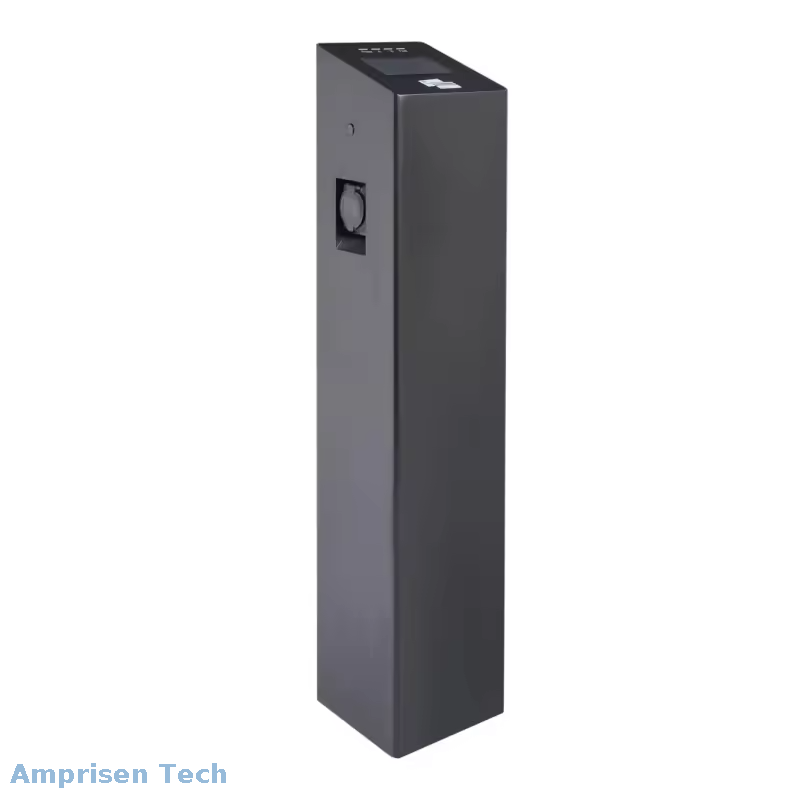

Type 2 Floor Mount EV Charging Station
This robust and user-friendly Type 2 Floor Mount EV Charging Station provides reliable AC charging for a wide range of electric vehicles.1 Designed for durability and ease of use, it's an ideal solution for various installation environments.2
| Feature | Specification |
| Input | |
| Power Supply | 1P+N+PE/3P+N+PE |
| Rated Voltage | 220V/380V |
| Rated Current | 16A/32A |
| Frequency | 50/60Hz |
| Output | |
| Output Voltage | 220V/380V AC |
| Maximum Current | 16A*2 / 32A*2 |
| Rated Power | 14kW(7kW*2)/22kW(11kW*2)/44kW(22kW*2) |
| Charge Connector | Type 2 Socket |
| Cable Length | 0m |
| User Interface | |
| Material | Metal |
| LED Display | 7" LED touch screen |
| Start Mode | Plug & Play / APP / RFID |
| Emergency Stop | Yes |
| Ingress Protection | IP65 |
| Safety | |
| Electrical Protection | Over current, Residual current, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
| Certification3 | CE TUV |
| Certification Standard | EN IEC 61851, EN 62196 |
| Warranty | 1 Year |
| Environment | |
| Installation | Floor-mount |
| Work Temperature | -30°C ~ +50°C |
| Work Humidity | 3% ~ 95% |
| Work Altitude | <2000m |
| Package | |
| Product Dimension | 4402501550mm |
| Package Dimension | 4802901600mm |
| Gross Weight | 50kg |
| External Package | Wooden box |
This Type 2 Floor Mount EV Charging Station offers a reliable and safe charging experience for electric vehicle users in various locations.
