Lamppost EV Charger
Amprisen

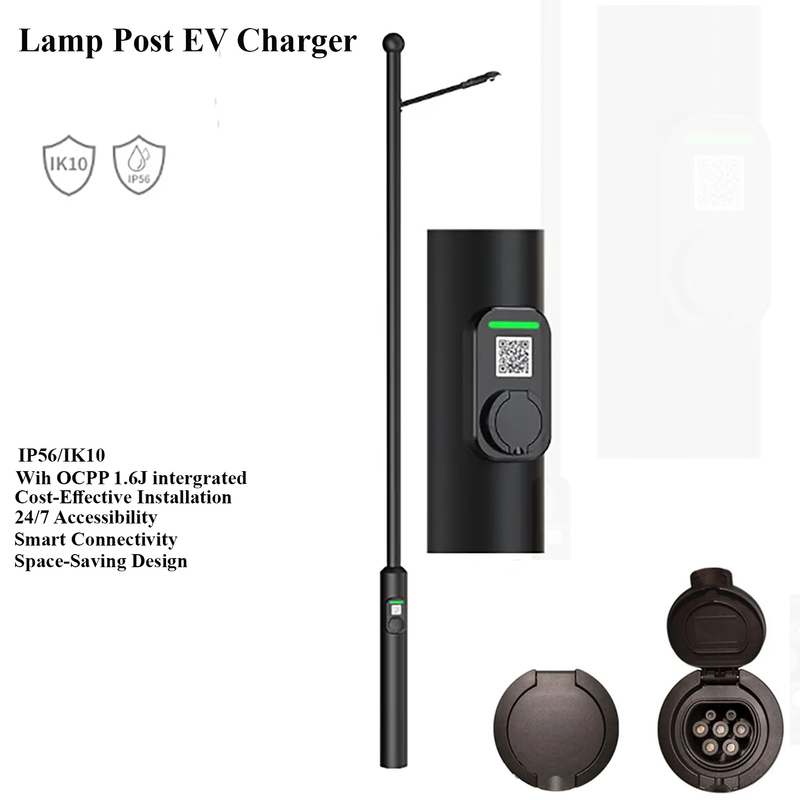

The Lamp Post EV Charger is a smart and efficient solution designed to integrate seamlessly into existing street infrastructure. Featuring OCPP1.6J, it ensures secure, fast, and reliable charging with intelligent connectivity and billing capabilities. By eliminating the need for additional construction, wiring, and costs, it optimizes space and reduces installation complexity. With its streamlined design, installation can be completed within an hour, making it an ideal option for residential neighborhoods without private parking garages. This innovative charger brings convenience to urban living, offering a sustainable and cost-effective way to meet the growing demand for EV charging.
AMP-07 is our new generation AC charging station to supply electricity to an EV. It has compact and modern design for your home and company charging use. The EVSE can connect to your mobile phone via Bluetooth App. You can operate and monitor the charging status remotely.
Essential details | |
Input voltage | 230Vac±20%,50±3Hz,1-phase + Neutral + PE |
Power factor | 0.99 at nominal output |
RCCB | Type-A + 6mA DC |
Rated output power | Up to 22KW |
Outlet type | IEC 62196 Type-2 |
Output voltage range | 230Vac |
Output current range | 0-32A |
Display | LED Indicator |
Specification | |
System | |
Charging type | Mode 3 |
Dimension ( H x W x D ） | 129 x 104 x 205mm |
Enclosure protection grade | IP55 |
Installation method | Inside of streetligh |
Net weight | 1.62kgs |
Charging standard | IEC 61851-22 |
Certificate | CE by DEKRA |
User authentication | App interface |
Interface languages | English (other Languages upon request) |
Network interface | Wi-Fi, Bluetooth, 4G(optional) |
Working temperature | -25°C – +50°C |
Storage temperature | -25°C – +70°C |
Altitude | <2000m |
Cooling | Natural cooling |
The protection grades | IP55/IK10 |
Ten Protection | Emergency shutdown Overcurrent protection Overvoltage protection Undervoltage protection Leakage protection Grounding protection Temperature protection Waterproof protection Power-off protection Data protection |
