Input
| Power Supply | 1P+N+PE/3P+N+PE |
|---|---|
| Rated Voltage | AC 220V / 380V |
| Rated Current | 16A / 32A |
| Frequency | 50/60Hz |
Share to: ftinw
Advertising EV Charging Station

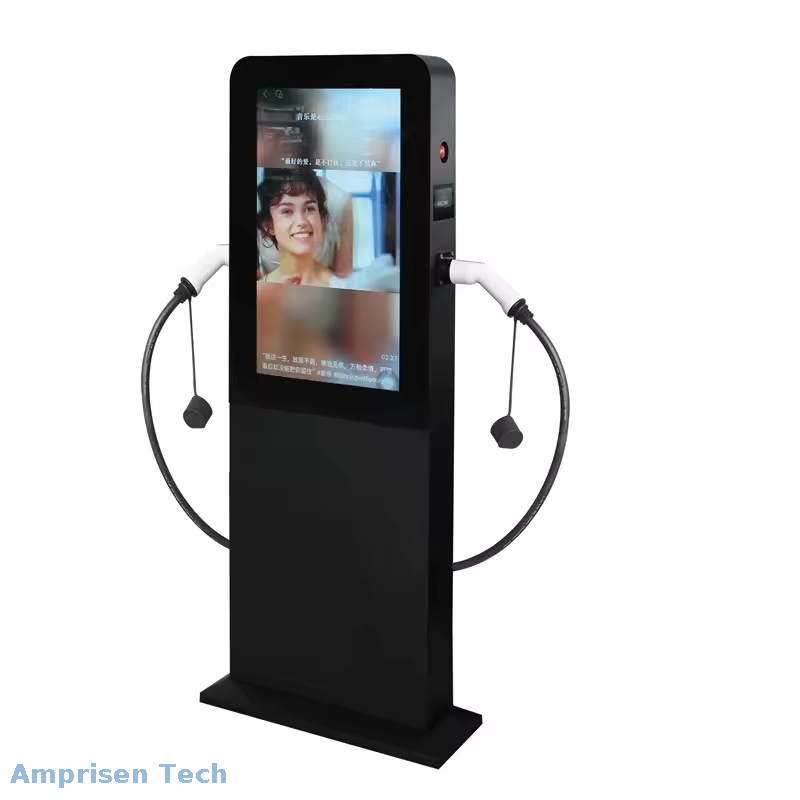

AD Floor Mount EV Charging Station This innovative Type 2 Floor Mount EV Charging Station combines efficient EV charging with a prominent 32-inch screen for dynamic advertising. It's an ideal solution for high-traffic commercial locations.
Quantity:
Model: Advertising EV Charging Station
Brand: Amprisen
Product Description
AD Floor Mount EV Charging Station
This innovative Type 2 Floor Mount EV Charging Station combines efficient EV charging with a prominent 32-inch screen for dynamic advertising. It's an ideal solution for high-traffic commercial locations.
Technical specifications
Product specifications at a glance
Key parameters are grouped by function so buyers can compare power, installation, connectivity, protection, certification, and operating conditions without reading an unstructured text block.
Output
| Output Voltage | AC 100V – 240V |
|---|---|
| Maximum Current | 32A * 2 |
| Rated Power | 14kW / 22kW / 44kW |
| Charge Connector | Connector with cable / Socket |
| Cable Length | 5m / 0m (socket) |
Display & Connectivity
| LED Display | 32" LED screen |
|---|---|
| Start Mode | Plug & Play / APP / RFID |
| Emergency Stop | Yes |
| Ingress Protection | IP65 |
| Impact Protection | IK10 |
Safety & Compliance
| Electrical Protection | Over current, Residual current, Surge, Ground, Over/Under voltage, Over/Under frequency, Over/Under temperature protection |
|---|---|
| Certification | CE, TUV |
| Certification Standard | EN IEC 61851, EN 62196 |
| Warranty | 1 Year |
Environmental & Protection
| Work Temperature | -10°C ~ +60°C |
|---|---|
| Work Humidity | 5% ~ 95% |
| Work Altitude | <2000m |
| Panel Specification | Display Size (scale) |
| 698mm(H) x 392mm(V) | Resolving Power |
| 1920 x 1080 | Display Color |
| 16.7M | Contrast Ratio |
| 3000 | 1 |
| Viewing Angle | 178°/178° |
| Brightness | 300 cd/㎡ |
| Response Time | 5ms |
| MTBF (Reliability) | 60,000 hours |
| Power Consumption | Power Supply |
| AC 100V – 240V, 50/60Hz | Maximum Power Consumption |
| ≤160W | Standby Power |
| ≤3W | Product Dimension |
| 550 * 150 * 1600mm | Package Dimension |
| 720 * 300 * 1650mm | Gross Weight |
| 100kg | External Package |
| Wooden box | This charging station offers a unique combination of efficient EV charging and impactful advertising, making it a smart investment for modern commercial spaces. |
Project fit and buyer notes
Advertising EV Charging Station for EV charging projects
Advertising EV Charging Station can be evaluated as part of Amprisen's AC EV charger range. Confirm connector, power, network, certification, branding, and installation requirements before quotation so the final configuration matches the target market and deployment scenario.
Short answer:
Advertising EV Charging Station should be evaluated by power level, connector standard, socket or cable output, communication method, certification market, installation scenario, and whether the buyer needs private or managed charging.
Advertising EV Charging Station should be evaluated by power level, connector standard, socket or cable output, communication method, certification market, installation scenario, and whether the buyer needs private or managed charging.
Specification focus for buyers
| Decision area | What to confirm |
|---|---|
| Power and phase | Confirm 7kW single-phase or 11kW/22kW three-phase charging based on grid capacity and vehicle onboard charger. |
| Connector and output | Select Type 1, Type 2, GBT, or NACS planning, then choose socket or tethered cable output. |
| Smart functions | Confirm OCPP, RFID, app control, DLB, WiFi, Bluetooth, Ethernet, or 4G only when the site needs managed operation. |
| Metering and protection | Check Dynamic Load Balancing for shared power sites, MID metering for billing or reimbursement, and RCD requirements such as Type A, Type B, or 6mA DC leakage protection. |
| Use case | Separate private home charging from apartment, hotel, workplace, parking operator, and fleet scenarios. |
Typical applications
- Residential charging
- Workplace charging
- Apartment and hotel parking
- Commercial parking and destination charging
Configuration notes
- 7kW, 11kW, and 22kW AC charging options
- Socket or tethered cable versions
- OCPP, RFID, app, and backend integration options
- Wall-mounted and floor-mounted formats
Before inquiry
- Confirm single-phase or three-phase input
- Choose the correct AC family first: Apollo Type 2 wallbox, MONTA smart AC, floor-mounted commercial AC, or STONE wallbox
- Decide socket vs tethered cable and LCD/TFT screen needs
- Confirm OCPP backend, RFID, load balancing, and local certification needs
Procurement fit
AC EV chargers are the normal starting point for home, workplace, apartment, hotel, and destination charging because they balance installation cost, parking dwell time, and everyday driver convenience.
Market and standards notes
Select Type 1, Type 2, GBT, or NACS planning by country first, then confirm 7kW, 11kW, or 22kW power, socket or cable output, OCPP, RFID, app control, Dynamic Load Balancing, MID metering, RCD protection, and certification needs.
Implementation risks to confirm
Common risks are undersized grid capacity, unclear backend responsibility, wrong connector standard, cable management problems, outdoor exposure, and inconsistent installation guidance for distributors or installers.
Common buyer questions
Is Advertising EV Charging Station suitable for commercial EV charging projects?
Advertising EV Charging Station can be reviewed for commercial projects when its power, connector, communication, certification, and installation format match the target use case. Share the site and backend requirements before quotation.
Can this AC EV charger be configured for OCPP or smart charging?
OCPP, RFID, app, 4G/WiFi/Ethernet, and remote monitoring requirements should be confirmed by model and project configuration. Amprisen can discuss backend compatibility during the inquiry stage.
What project details should be sent with an inquiry?
Send the target country, connector standard, power level, input phase or grid details, mounting type, communication method, certifications, branding needs, estimated quantity, and expected delivery schedule.
