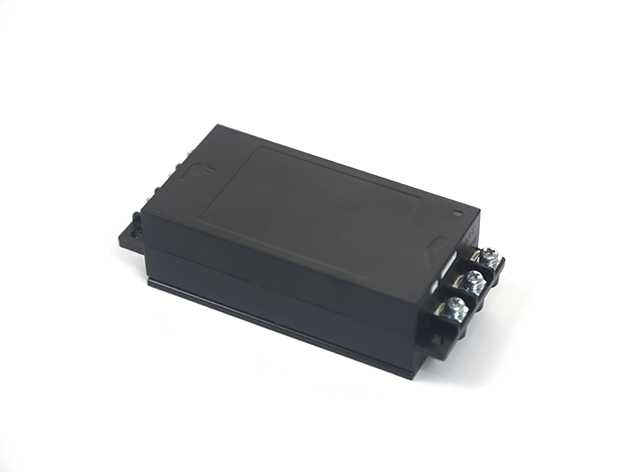

Model: Charging Module Type2 7KW
Brand: Amprisen
Product Description
Introducing EV Charger Module, a revolutionary solution designed to enhance the convenience of charging electric vehicles. Departing from traditional wall-mounted charging stations, EV Charger Module offers unparalleled versatility and ease of use.
Hardware Integration
| Electric Relay |
Maximum Support for 48A Charging / Meet the requirements of safety regulations |
| Full load power protection |
Full load power-off life is> 50,000 times / Patent design: The only one |
| Bluetooth 5.0 |
External cloud fast charging / MQTT protocol / OTA / WiFi support is optional |
| DC-DC source |
Low power consumption, ripple coefficient <100 mV / 12V 500mA |
| Negative Voltage Output |
12V Output / The charging power is controlled by the CP detection |
| Leakage Protection (RCD) |
Consistent with the TypeA + 6 mA / Comply with CE Criteria |
| Power Metering (Electricity Meter) |
Meet level 1 accuracy requirements / MID instruction certification |
| Temperature Sensor |
Error accuracy: ± 2% RH / Intelligent temperature control, detection and protection design |
| CP |
2P / Charging output power control |
| Power Supply + UART Interface |
12V/500mA / Provide power / connect interactive control board to peripherals |
| Protection Functions |
Residual current protection,Short circuit protection,Grounding protection,Reverse connection protection,Adhesionprotection,Over-temperature protection,Over-current protection,Lightning protection,Over-voltage protection,Power-off when fullycharged / Software Functions |
| – Power level adjustment via app |
– Scheduled charging / – Built-in MQTT/cloud fast charging protocol |
| – Local storage for up to 50,000 recent logs |
– Support for OTA (Over-The-Air) software updates / Compliance Standards |
| – CCU Module |
– Compliant with European standards: IEC/EN61851-1 / – Compliant with American standards: UL2594; UL2231; CSA C22.2 No. 280:22 |
| – Compliant with Chinese standards: GB/T 18471; GB/T 34657.1; NB/T 33002-2018; NB/T 33008.2-2018 |
– RCD (Residual Current Device): / – Compliant with European standards: IEC 62955; IEC 62752 |
| – Compliant with Chinese standards: GB/T40820; GB/T 16916.1 |
– Compliant with American standards: UL2594; UL2231 |
Product Features
| 1.Ultra-high integration, compact size |
Convenient for various exterior and structural designs. |
| 2.Comprehensive functionality integration |
A complete charging station with just one housing, leading to high development efficiency. |
| 3.Comprehensive module certification |
Low certification costs and short certification cycles; only structural differences testing required. |
| 4.High level of module intelligence |
OTA capability for RCD/electrical energy metering and other functions, with rich built-in platform integration protocols. |
| 5.Comprehensive and reliable protection functions |
Ten major safety protection functions ensure safety and reliability. |
| 6.High compatibility |
Support for expanded Bluetooth + WiFi functionality, MQTT protocol, and cloud fast charging protocol. |
| 7.Strong expansion capability |
Small size, rich expansion interfaces, external design adapter boards supporting single-phase and three-phase charging station modules. Hardware supports metering, 4G module, Ethernet, NFC, display screens, LED lights, etc. Software supports cloud platform, cloud fast charging, OCPP1.6J |
| 8.Strong compatibility and applicability |
Mode 2/mode 3 software switching, continuous adjustment of charging current. One hardware module can complete all single-phase charging station designs |
| 9.Intelligent switching |
Support for wide input voltage, automatic detection of AC input voltage, intelligent control for switching national voltage, foolproof design, reducing after-sales costs. |
Application notes
10.One module for all, gradually iterated optimization, stable quality, short development and certification cycles, high efficiency, and low cost.
Project fit and buyer notes
Charging Module Type2 7KW for charger manufacturing and integration
Charging Module Type2 7KW can be evaluated as part of Amprisen's charging module range. Confirm power level, electrical interface, control-board connection, protection requirements, certification, mechanical fit, and integration schedule before quotation.
Typical applications
- Charger manufacturing
- System integration
- Repair and replacement projects
- OEM/ODM equipment development
Configuration notes
- Module-level supply for charger manufacturing
- Integration support for charging equipment projects
- Options for product development and production
- B2B support for OEM/ODM requirements
Before inquiry
- Confirm power level and electrical interface
- Confirm cooling, enclosure, and installation design
- Define certification and reliability requirements
- Share project volume and integration schedule
Common buyer questions
Is Charging Module Type2 7KW suitable for charger manufacturing projects?
Charging Module Type2 7KW can be reviewed for charger manufacturing or integration projects when its power level, electrical interface, protection logic, control-board connection, certification, and mechanical fit match the target design.
What should buyers confirm for this charging module?
Confirm power level, input and output electrical interface, control and communication ports, protection functions, cooling design, certification market, housing constraints, and production schedule.
What project details should be sent with an inquiry?
Send the charger design target, voltage and current requirements, controller interface, protection requirements, certification needs, mechanical constraints, estimated quantity, and integration timeline.
