Input
| Power Supply | 1P+N+PE/3P+N+PE |
|---|---|
| Rated Voltage | 220V/380V |
| Rated Current | 16A/32A |
| Frequency | 50/60Hz |
Share to: ftinw

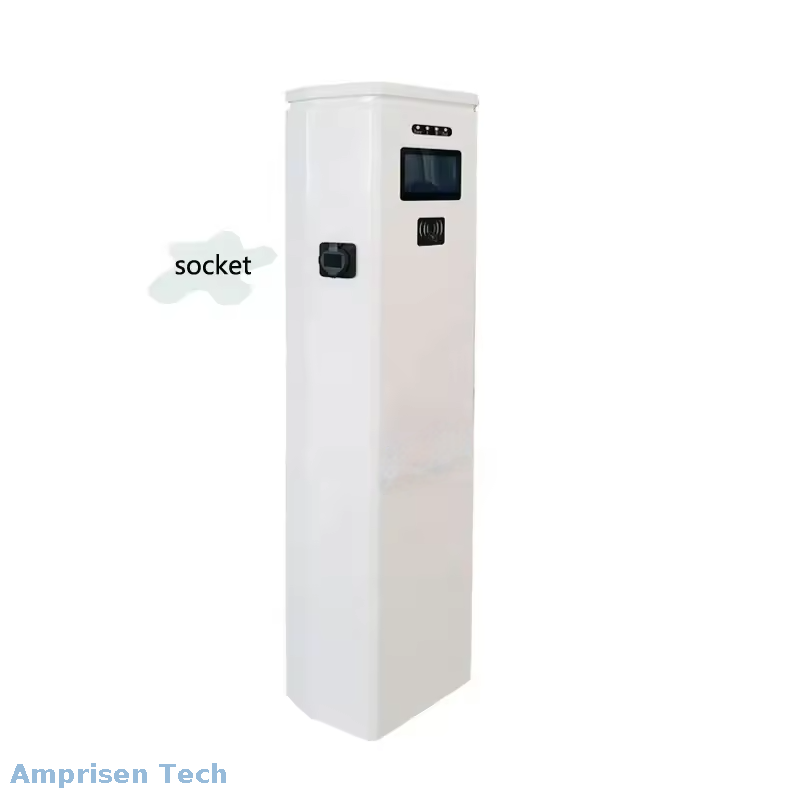

Floor Mount AC EV Charger
Type 2 Floor Mount EV Charging Station This robust and user-friendly Type 2 Floor Mount EV Charging Station provides reliable AC charging for a wide range of electric vehicles.
Quantity:
Model: Floor Mount AC EV Charger
Brand: Amprisen
Product Description
Type 2 Floor Mount EV Charging Station
This robust and user-friendly Type 2 Floor Mount EV Charging Station provides reliable AC charging for a wide range of electric vehicles.
Designed for durability and ease of use, it's an ideal solution for various installation environments.
Technical specifications
Product specifications at a glance
Key parameters are grouped by function so buyers can compare power, installation, connectivity, protection, certification, and operating conditions without reading an unstructured text block.
Output
| Output Voltage | 220V/380V AC |
|---|---|
| Maximum Current | 16A*2 / 32A*2 |
| Rated Power | 14kW(7kW*2)/22kW(11kW*2)/44kW(22kW*2) |
| Charge Connector | Type 2 Socket |
| Cable Length | 0m |
Display & Connectivity
| Material | Metal |
|---|---|
| LED Display | 7" LED touch screen |
| Start Mode | Plug & Play / APP / RFID |
| Emergency Stop | Yes |
| Ingress Protection | IP65 |
Safety & Compliance
| Electrical Protection | Over current, Residual current, Ground protection, |
|---|---|
| Certification | 3 |
| CE TUV | Certification Standard |
| EN IEC 61851, EN 62196 | Warranty |
Environmental & Protection
| Installation | Floor-mount |
|---|---|
| Work Temperature | -30°C ~ +50°C |
| Work Humidity | 3% ~ 95% |
| Work Altitude | <2000m |
| Package | Product Dimension |
| 1550mm | Package Dimension |
| 1600mm | Gross Weight |
| 50kg | External Package |
| Wooden box | This Type 2 Floor Mount EV Charging Station offers a reliable and safe charging experience for electric vehicle users in various locations. |
Application notes
Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Project fit and buyer notes
Floor Mount AC EV Charger for EV charging projects
Floor Mount AC EV Charger can be evaluated as part of Amprisen's AC EV charger range. Confirm connector, power, network, certification, branding, and installation requirements before quotation so the final configuration matches the target market and deployment scenario.
Short answer:
Floor Mount AC EV Charger should be evaluated by power level, connector standard, socket or cable output, communication method, certification market, installation scenario, and whether the buyer needs private or managed charging.
Floor Mount AC EV Charger should be evaluated by power level, connector standard, socket or cable output, communication method, certification market, installation scenario, and whether the buyer needs private or managed charging.
Specification focus for buyers
| Decision area | What to confirm |
|---|---|
| Power and phase | Confirm 7kW single-phase or 11kW/22kW three-phase charging based on grid capacity and vehicle onboard charger. |
| Connector and output | Select Type 1, Type 2, GBT, or NACS planning, then choose socket or tethered cable output. |
| Smart functions | Confirm OCPP, RFID, app control, DLB, WiFi, Bluetooth, Ethernet, or 4G only when the site needs managed operation. |
| Metering and protection | Check Dynamic Load Balancing for shared power sites, MID metering for billing or reimbursement, and RCD requirements such as Type A, Type B, or 6mA DC leakage protection. |
| Use case | Separate private home charging from apartment, hotel, workplace, parking operator, and fleet scenarios. |
Typical applications
- Residential charging
- Workplace charging
- Apartment and hotel parking
- Commercial parking and destination charging
Configuration notes
- 7kW, 11kW, and 22kW AC charging options
- Socket or tethered cable versions
- OCPP, RFID, app, and backend integration options
- Wall-mounted and floor-mounted formats
Before inquiry
- Confirm single-phase or three-phase input
- Choose the correct AC family first: Apollo Type 2 wallbox, MONTA smart AC, floor-mounted commercial AC, or STONE wallbox
- Decide socket vs tethered cable and LCD/TFT screen needs
- Confirm OCPP backend, RFID, load balancing, and local certification needs
Procurement fit
AC EV chargers are the normal starting point for home, workplace, apartment, hotel, and destination charging because they balance installation cost, parking dwell time, and everyday driver convenience.
Market and standards notes
Select Type 1, Type 2, GBT, or NACS planning by country first, then confirm 7kW, 11kW, or 22kW power, socket or cable output, OCPP, RFID, app control, Dynamic Load Balancing, MID metering, RCD protection, and certification needs.
Implementation risks to confirm
Common risks are undersized grid capacity, unclear backend responsibility, wrong connector standard, cable management problems, outdoor exposure, and inconsistent installation guidance for distributors or installers.
Common buyer questions
Is Floor Mount AC EV Charger suitable for commercial EV charging projects?
Floor Mount AC EV Charger can be reviewed for commercial projects when its power, connector, communication, certification, and installation format match the target use case. Share the site and backend requirements before quotation.
Can this AC EV charger be configured for OCPP or smart charging?
OCPP, RFID, app, 4G/WiFi/Ethernet, and remote monitoring requirements should be confirmed by model and project configuration. Amprisen can discuss backend compatibility during the inquiry stage.
What project details should be sent with an inquiry?
Send the target country, connector standard, power level, input phase or grid details, mounting type, communication method, certifications, branding needs, estimated quantity, and expected delivery schedule.
